Motor controller - FESTO CMMS-AS-C4-3A (552741)

Detailní popis produktu

regulátor

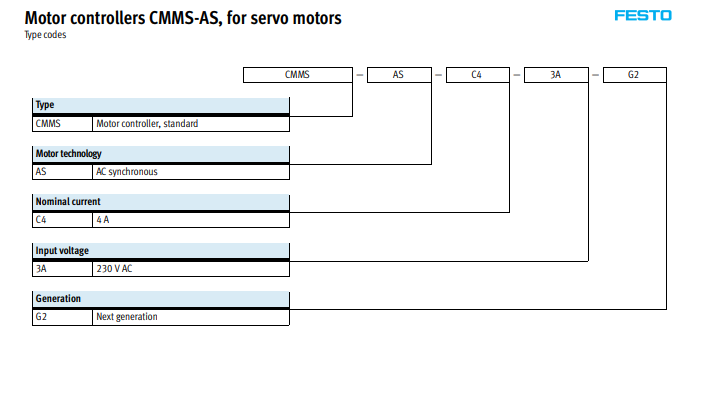

• Regulátor motoru - motor controller pro servomotor CMMS-AS-C4-3A
• Part number: 552741
• Použitý/repasovaný díl, záruka 6 měsíců.
• General technical data
  Type of mounting Screwed to a mounting plate
  Display 7-segment display
  Parameterisation interface RS232 (9,600 … 115,000 bits/s)
  Encoder interface input Setpoint position value as encoder signal
  EnDat V2.1 serial / V2.2
  Encoder interface output Actual value feedback via encoder signals in speed control mode
  Setpoint specification for downstream slave drive
  Resolution 4,096 ppr
  Braking resistor, integrated [] 230
  Pulse power of braking resistor [kVA] 0.7
  Braking resistor, external []  100
  Impedance of setpoint input [k] 20
  Number of analogue outputs 1
  Operating range of analogue outputs [V] 0 … 10
  Resolution of analogue outputs [Bit] 8
  Characteristics of analogue outputs Short circuit-proof
  Number of analogue inputs 1
  Operating range of analogue inputs [V] 10
  Characteristics of analogue inputs Differential inputs
  Configurable for speed
  Configurable for torque
  Mains filter Integrated
  Max. length of motor cable [m] 15 (without external mains filter)
  Product weight [g] 1,400
